3W-170b4

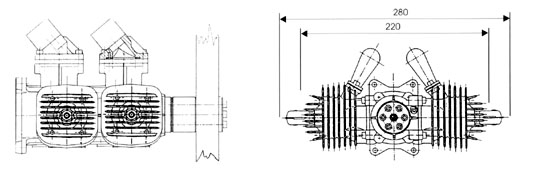

Specifications Sheet





Download Instruction Manual

Cylinder Capacity 10.36 cu.in 170 ccm
Power Rating 16.5 HP 12.13 kW
Bore Diameter 1.73 in 44 mm
Stroke 1.10 in 28 mm
Weight 11.7 lbs 5320 g
Speed Range 8500 RPM
Crankshaft 5 Ball bearings
Connecting Rod Needle bearings on both ends
Oil / Gasoline Ratio 1:50 - 1:80 Mix
Ignition Input Voltage: 6.0 to 8.0 V
6.0 V NiCD / NiMH or 7.2 V LiPo / Li Ion
Propeller 2-Bladed
26 x 14
28 x 10
28 x 12
3-Bladed
26 x 14
27 x 20
