KS43755i Fits 3W 60i, 65i, 70/75i, 70/75iUS, 120, 140, 150, 157, 170
Drop: 2.00" (50 mm) Run: 15.0" OD 28mm
|
Price : $79.00
Quantity : Add To Cart |

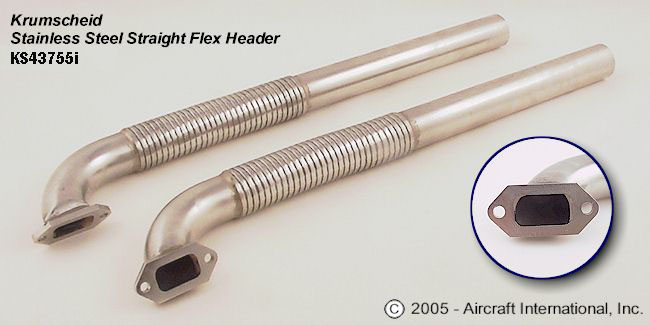

Krumscheid
Stainless Steel Flex Header
|
Model: KS43755i
Fits 3W 60i, 65i, 70/75i, 70/75iUS,
120, 140, 150, 157
|
|

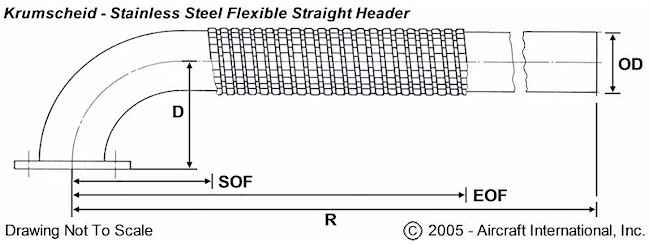

- Drop is measured from the face of the flange at the mounting bolt centerline to the centerline of the output tube
- Run is measured from the center of the exhaust port to the end of the output tube
- Run can vary across batches
as much as +/- 0.5"
- Drop can vary across batches
as much as +/- 0.125"
- Minimum Length is computed by
adding 1.5" to the End Of Flex (EOF)
measurement
|
|
KS43755i Specifications
|
|
D
|
Drop
|
1.75"
|
|
R
|
Run
|
15.0"
|
|
SOF
|
Start Of Flex
|
2.25"
|
|
EOF
|
End Of Flex
|
7.50"
|
|
|
Minimum Length
|
8.5"
|
|
OD
|
Output Diameter
|
28mm
|
|
|
Angled Flange
|
YES
|
|
|
Weight
|
6.8 Oz
|
|
Specifications Subject To
Change Without Notice
|
|
|
|
|
|
|
|
