Features

Access to a maximum of eighteen channels
Simple wiring: the receivers are connected using a serial link
Integral SRS, allowing the use of two receivers
Compatible with: Futaba, Spektrum, Graupner, Jeti, Multiplex and JR
High-current power socket MPX or Deans
S-BUS output for use in a BUS system
User-variable frame rate
Can be updated using the PowerBox USB Interface

Technical Data

Operating voltage	4.0V - 9.0V
Power supply	2S LiPo, 2S LiFePo, 5S NiCd/NiMH
Current drain Power-on state	25mA
Maximum load current	Peak 30A
Signal input	serial
Supported RC systems	Futaba, Spektrum, Jeti, Graupner, JR, Multiplex
Receiver redundancy	SRS
Channels	18

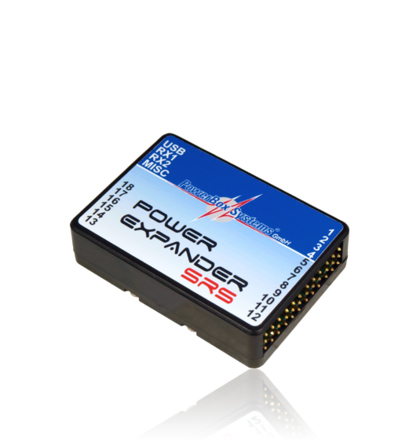

Product description

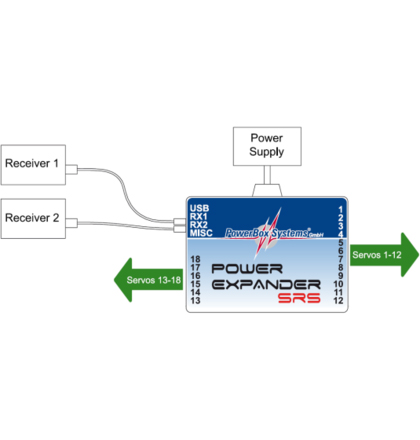

The PowerExpander SRS makes it possible to exploit all the channels provided by your radio control system when using small but highly-specified receivers. Safety is also significantly enhanced, because two receivers can be connected to thePowerExpander SRS. The integral Serial Receiver System selects any receiver, and - if an error should occur - switches over automatically to the receiver which is still operating.

This represents a simple method of doubling the number of receiver aerials. The unit is fitted with a high-current socket to ensure that the power supply can cope with the large number of channels which it makes available. It also features an output carrying the S-BUS signal, which makes it possible to use any radio control system in conjunction with an S-BUS wiring arrangement.

As powersupply we recommend the PowerBox BaseLog or the PowerBox Gemini II.

Instruction Manual

1 MB	Operating Instructions 1 MB .PDF Format
