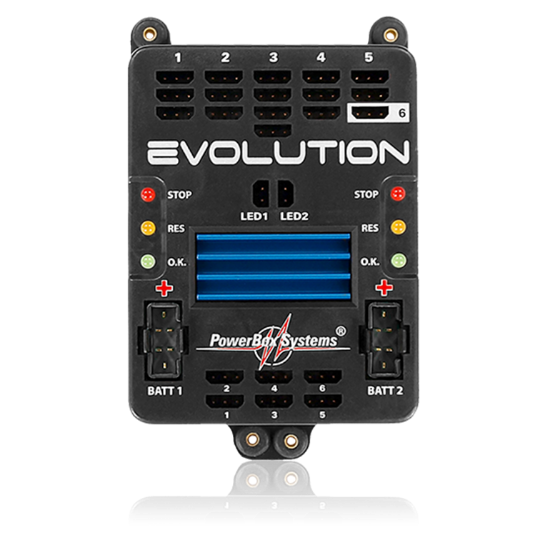

PB4230 Evolution 40/16

$99.00

Qty:

Specifications

Max. Constant Current		2 x 10 Amp
Max. Surge Current		2 x 20 Amp
Input / Output Channels		5
Servo Pulse Amplifiers		5
Servo Connections		16
Temperature Range		14° F to 131° F
Power Supply		(2x) Li Ion / Li Po Packs or (2x) NiCd / NiMh Packs
Working Voltage		4.0 V to 9.0 V
Current Drain		25 mA
Voltage Loss		0.35 V
Weight		4.05 oz incl. switch
Size		3.66" x 2.30" x 0.75"

Instruction Manual

150 KB

Operating Instructions
150 KB .PDF Format

Features

Dual linear voltage regulators for
servos & receiver/s @ 5.90 Volts
Voltage to servos & receiver/s
regulated to 6.0V
For 7.4 Volt LiPo & Li Ion Batteries or
5 Cell NiCad or NiMh Batteries (Switchable)
Electronic 2-way security switch included
(no more accidental shut-off / turn-on)
Both Batteries Separately Switchable
Low voltage / in-flight error memory
(status LED's and telltale button
report any in-flight conditions)
2 independent voltage controllers
2 bright external status LEDs
2 Internal Voltage Bar Graphs
Triple redundancy power connectors
(3 common + and - pins in each connector)
Ideal soution to suppress
jet electronic noise
Perfect for dual receiver installations
